JML 5019

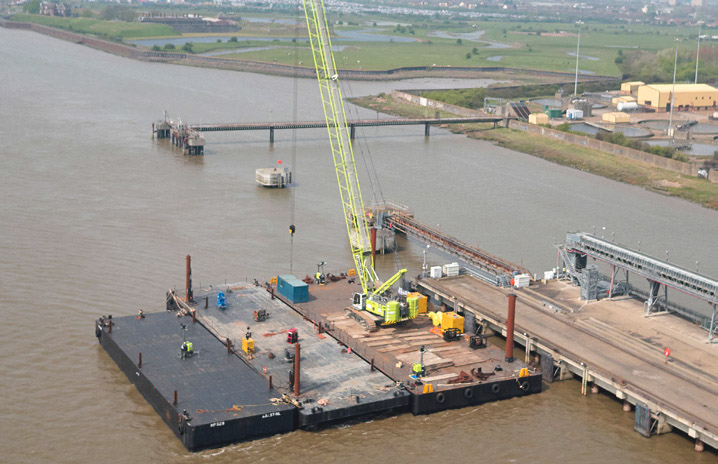

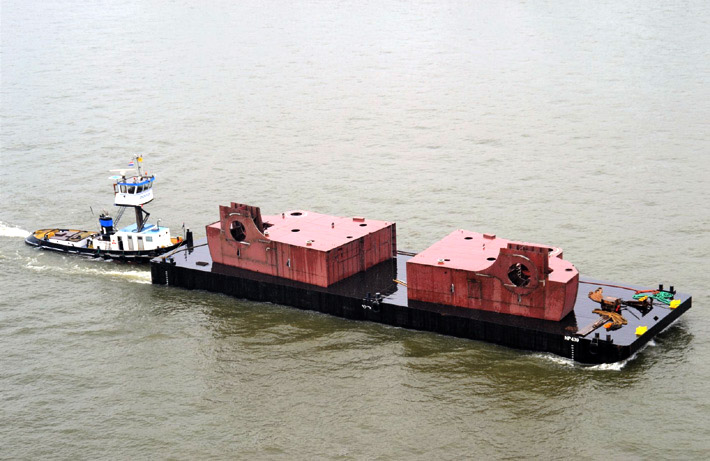

JML 5019 pontoon barge is a swim-ended, rectangular, flat top deck cargo barge. It has two spudlegs for precise position holding and a shallow draft. Suitable for working close to shore and with an excellent deck load capacity. Perfect for bulk cargo, heavy plant or a large platform for marine construction sites.
Dimensions
Length of waterline: 50m
Beam: 18.8m
Mould Depth: 3m
Draft (Light): 0.49m
Gross Tonnage: 739t
Capacity
Deck Strength: 12t/m2
Cargo Capacity: 1734t
Class
BV International Load Line Certification
BV Unrestricted Navigation
Equipment
2 x Ø914mm x 18m Spud Legs
6 x Double Mooring Bollards
Manholes Flush Mounted
2 x SMIT brackets at the bow
