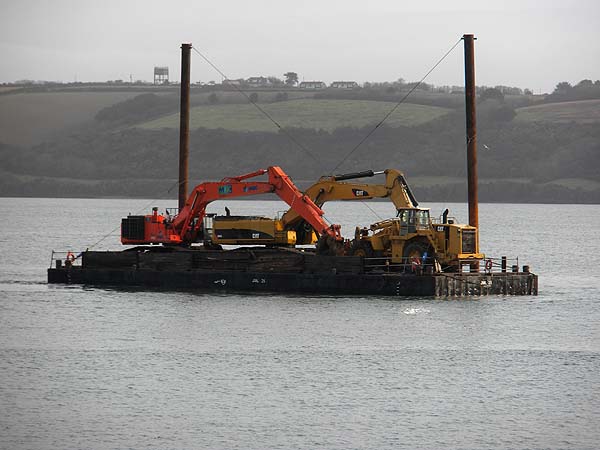

JML35 is a swim-ended, rectangular, flat top deck cargo barge. It has two spud legs for precise position holding, a shallow draft, suitable for working in close to shore and a large deck load capacity, for bulk cargoes such as rock or heavy plant. Timber deck protection and a wave screen are also fitted for the security of cargos at sea.
Length: 34.8 m Beam (Hull): 10.0 m Depth: 2.5 m
Draft (Light): 0.59 m Draft (Loaded): 1.96 m Cargo Capacity: 410 t
Spud Legs: 2 x 18m Gross Tonnage: 217 Deck Load (max): 4 t/m²
Click the icon to download a vessel specification sheet.
